Eurocode 2

RC design sheets for EN 1992-1-1.

Excel design sheets for beams, columns, slabs and footings, built directly to EN 1992-1-1 — with every check traceable back to the clause it comes from.

What's checked

Covers ultimate and serviceability limit states for the elements you design most often, with inputs for characteristic strengths, partial factors and exposure class set out the way the code sets them out — so a checker can follow the sheet without a separate calc note.

  • Bending & flexural capacity §6.1
  • Shear resistance §6.2
  • Deflection (span/depth) §7.4
  • Crack width control §7.3
  • Column axial + biaxial bending §5.8, §6.1
  • Punching shear, footings & slabs §6.4
Code covered
EN 1992-1-1:2004 + UK/EU National Annexes
Elements
Beam · column · slab · footing
Format
.xlsx, open formulas, no macros
Status
Hand-checked against worked examples
Licence
Single user, unlimited projects
A look inside

The sheets themselves.

Screenshots of the actual workbook, not mock-ups. Click any one to see it full size.

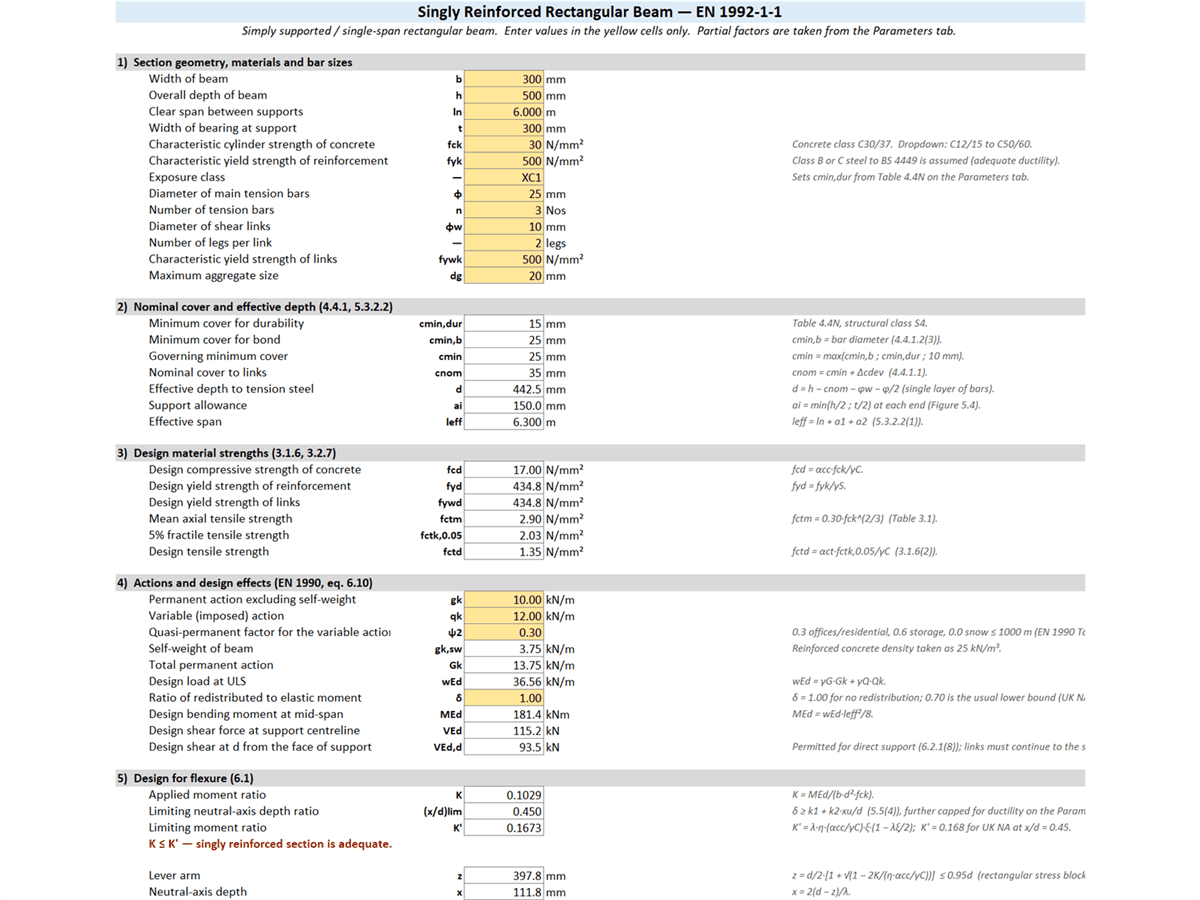

Eurocode 2 singly reinforced beam design sheet, showing section geometry, cover, design material strengths and the flexure check with EN 1992-1-1 clause references.
Beam — bending, shear, deflection and crack control, with the clause beside every line.

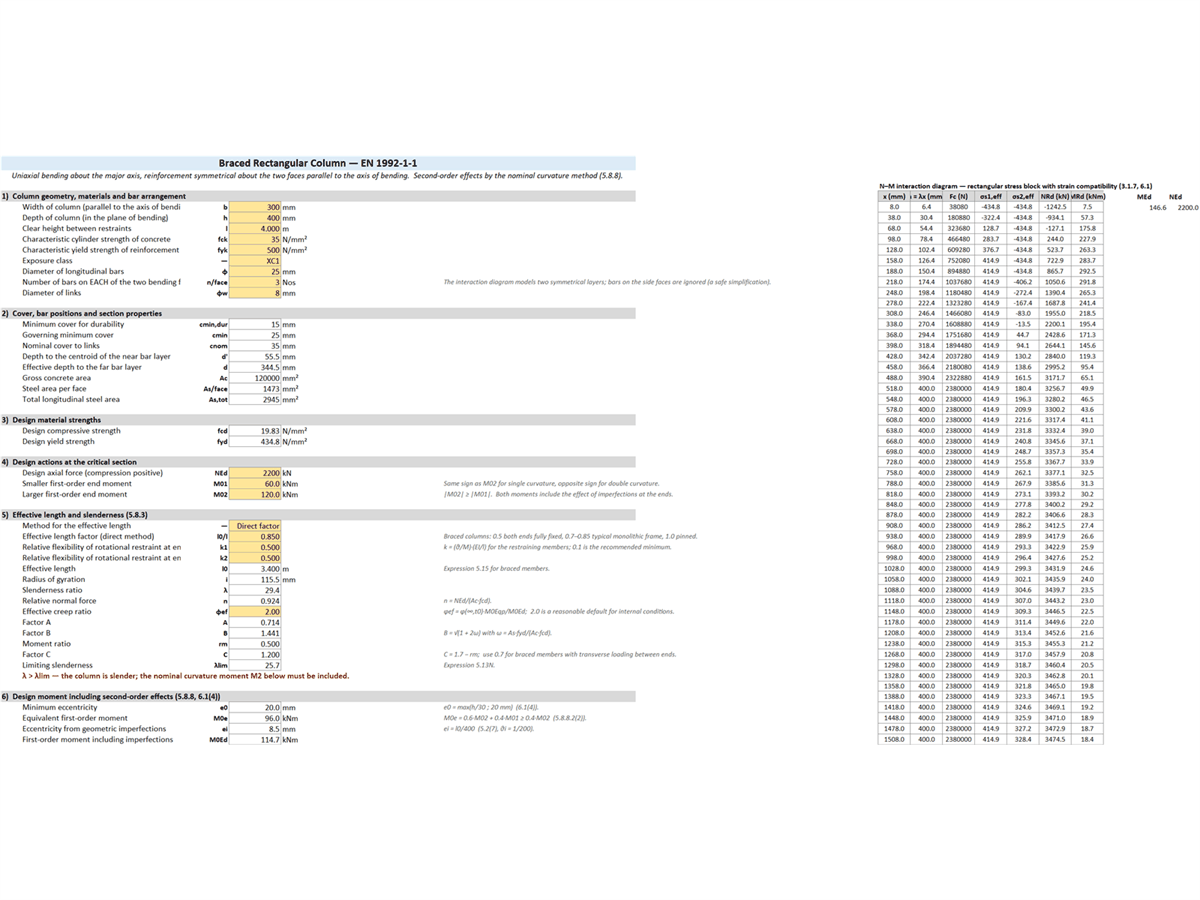

Eurocode 2 braced column design sheet with the nominal curvature method and a tabulated N–M interaction diagram.
Column — second-order effects by the nominal curvature method, with a live N–M interaction table.

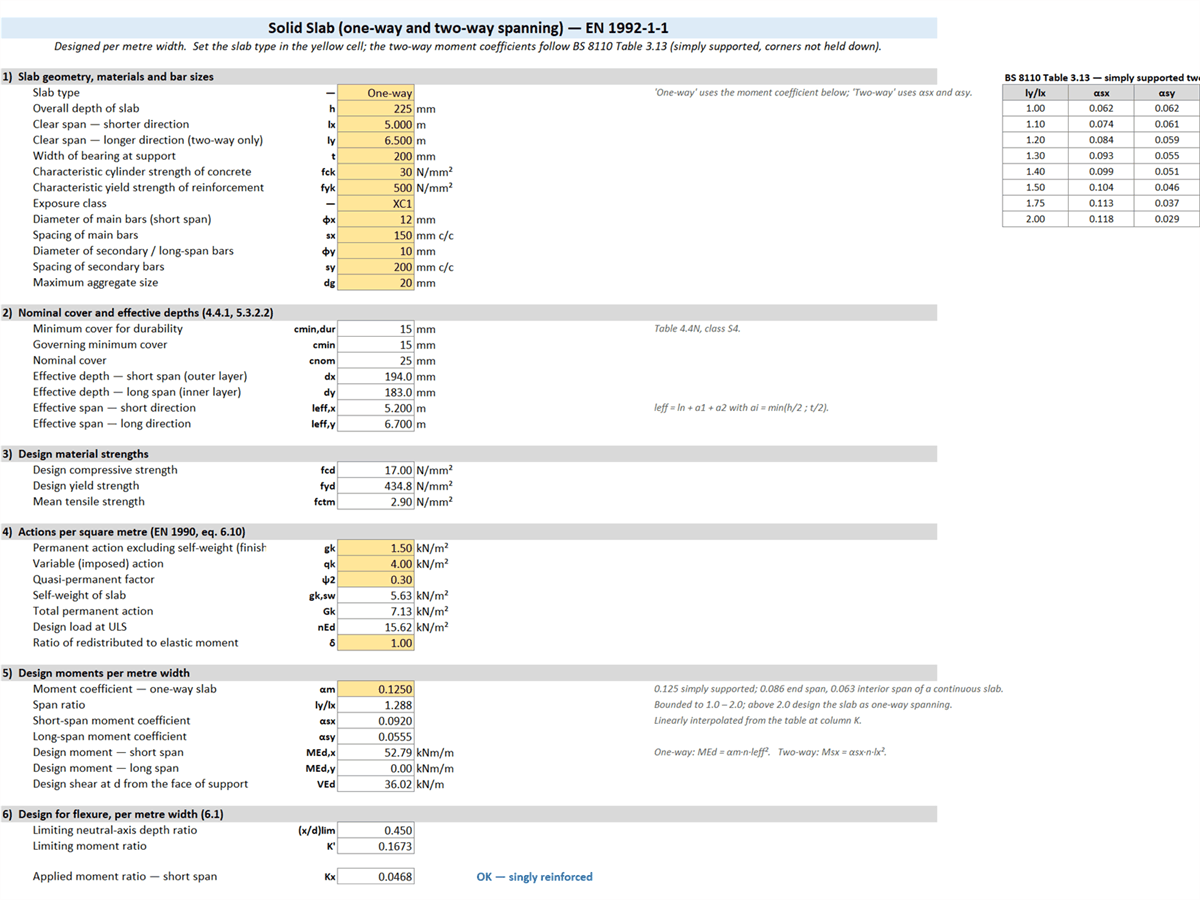

Eurocode 2 solid slab design sheet covering one-way and two-way spanning slabs designed per metre width.
Slab — one-way and two-way spanning, designed per metre width.

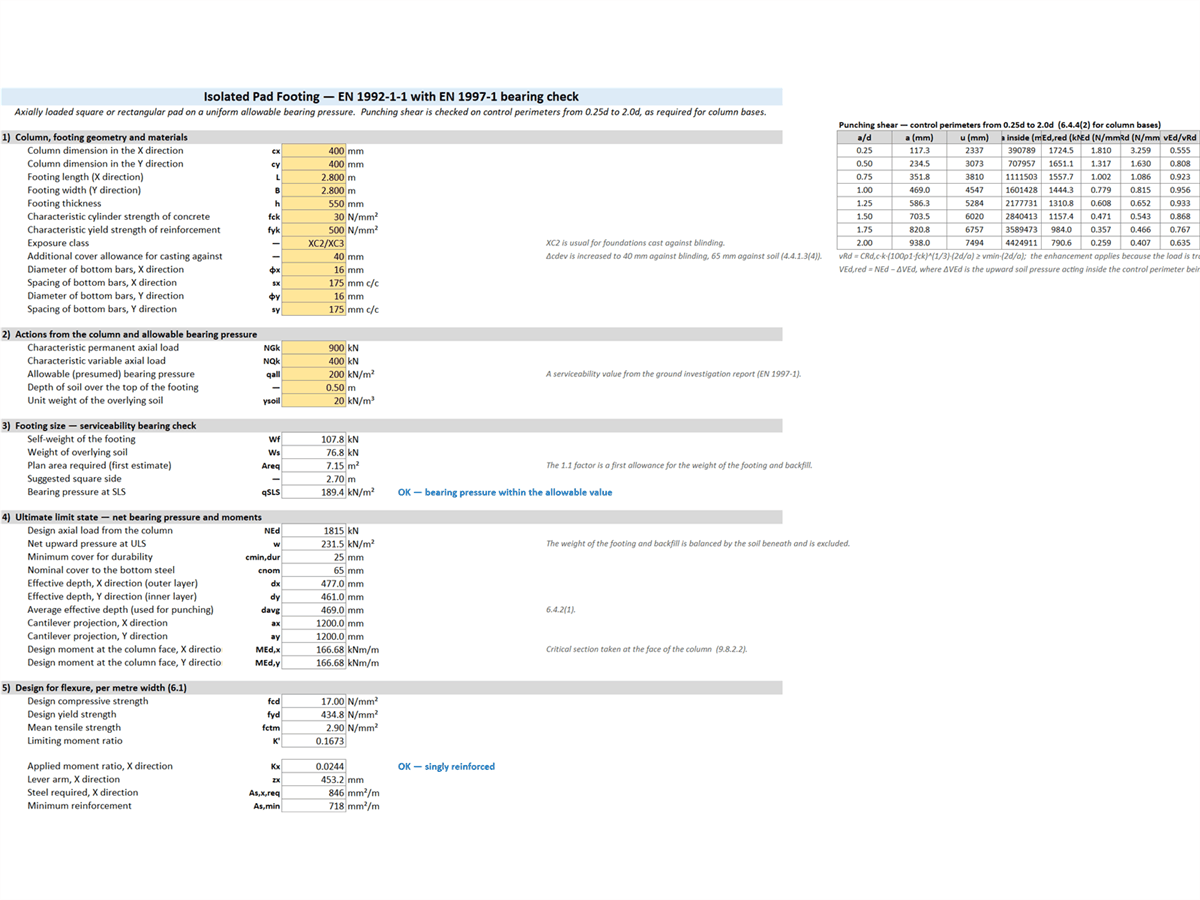

Eurocode 2 isolated pad footing design sheet with the bearing pressure check and a punching shear perimeter table.
Pad footing — bearing check to EN 1997-1, with punching shear on perimeters from 0.25d to 2.0d.
Buy the Eurocode 2 pack — €19.99 See the ACI 318 pack
